Our Micro850® Programmable Logic Controller Systems are designed for larger stand-alone machine control applications that require flexible communications and greater I/O capabilities. These controllers support up to 132 I/O points with high performance I/O, interrupts, and PTO motion plus embedded Ethernet and 2085 expansion I/O.
Popular Resources/Quicklinks
Overview
- Offers 24-point and 48-point controllers
- Includes 100 kHz speed high-speed counter (HSC) inputs on 24V DC models
- Provides embedded communications via USB programming port, non-isolated serial port (for RS-232 and RS-485 communications) and Ethernet port
- Supports up to five Micro800™ Plug-in Modules
- Supports up to four Micro850® Expansion I/O Modules, up to 132 I/O points
- Provides embedded motion capabilities by supporting as many as three axes with Pulse Train Outputs (PTO)
- Communicates via EtherNet/IP™
- Operates in -20…65 °C (-4…149 °F) temperatures
- Supports microSD™ card for program transfer, datalog, and recipe management through plug-in module
Additional Information
- Discover the benefits of modular flexibility by watching the Micro850 controller animation video.
- Find out how our Micro Control system offers a cost-effective and customizable solution for standalone machines in micro applications. Plus, learn about all the Micro Control products that enable the system.
- Watch these videos for information about how to:
- Program our Micro800 controllers
- Configure devices and visualize with PanelView 800 graphic terminals
- Get started with our Connected Components Workbench software
- The Rockwell Automation PartnerNetwork™ offers complementary product solutions for Micro800 Controllers through the Encompass Product Reference program.
Product Selection
Specifications
Certifications
- c-UL-us Class 1 Div 2
- CE
- C-Tick
- KC
Certifications apply when product is marked. See our Product Certification site for Declarations of Conformity, certificates and other certification details.
Software
Documentation
| Resource | Publication Number | Language |
|---|---|---|
| Micro800 Family of PLCs Brochure | 2080-BR001 | |
| Micro850 Programmable Logic Controller Product Profile | 2080-PP003 | |
| Micro800 Programmable Controllers Family Selection Guide | 2080-SG001 | |
| Micro800 Programmable Controllers General Instructions | 2080-RM001 | |
| Automation of Intermittent VFFS Machine Using Micro850 Controllers White Paper | OEM-WP011 | |
| Micro800 External AC Power Supply Installation Instructions | 2080-IN001 | |
| Micro850 24-Point Programmable Controllers Installation Instructions | 2080-IN007 | |
| Micro850 48-Point Programmable Controllers Installation Instructions | 2080-IN008 | |
| Micro830 and Micro850 Programmable Controllers User Manual | 2080-UM002 | |
| Micro850 Programmable Controller Procurement Specifications | 2080-SR002 |
Applications
Intermittent Vertical Form, Fill, and Seal Machine
Video Player
Media error: Format(s) not supported or source(s) not found
Download File: https://rockwellautomation.scene7.com/is/content/rockwellautomation/xmxAY9EBQ2zveKv1WfQTah-100:00
00:00
Material Handling
Video Player
Media error: Format(s) not supported or source(s) not found
Download File: https://rockwellautomation.scene7.com/is/content/rockwellautomation/N4J3sLgHqfnm4556H7q7qW-100:00
00:00
Shearing Machine with Flying Cut
Video Player
Media error: Format(s) not supported or source(s) not found
Download File: https://rockwellautomation.scene7.com/is/content/rockwellautomation/bZ4ix8iPPSHWwwiVeME1hw-100:00
00:00

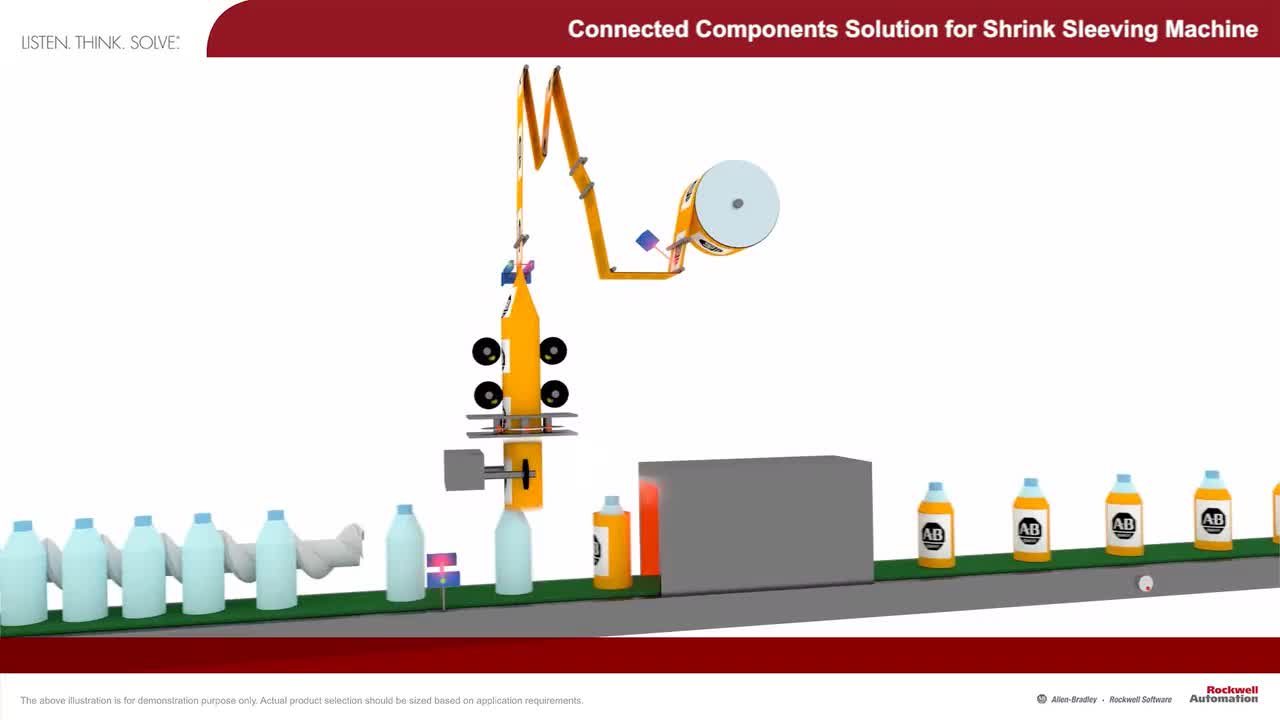

Shrink Sleeving Machine
Video Player
Media error: Format(s) not supported or source(s) not found
Download File: https://rockwellautomation.scene7.com/is/content/rockwellautomation/VzsuPCXeZTgmuMuqKSAhxt-100:00
00:00
Solar Panel Positioning
Video Player
Media error: Format(s) not supported or source(s) not found
Download File: https://rockwellautomation.scene7.com/is/content/rockwellautomation/y9XbZYEXoks4q3L22X3GmE-100:00
00:00
Stamping Press Machine
