Our Micro830® Programmable Logic Controller Systems are designed for stand-alone machine control applications that require flexible communications and I/O capabilities. These controllers support up to 88 I/O points with high performance I/O, interrupts, and PTO motion.
Popular Resources/Quicklinks
Overview
- Offers 10-point, 16-point, 24-point, and 48-point controllers
- Includes 100KHz speed high-speed counter (HSC) on 24V DC models
- Supports as many as five Micro800™ plug-in Modules
- Provides embedded motion capabilities by supporting as many as three axes with Pulse Train Outputs (PTO)
- Provides embedded communications via USB programming port and non-isolated serial port (for RS-232 and RS-485 communications)
- Operates in -20…65 °C (-4…149 °F) temperatures
- Supports microSD™ card for program transfer, datalog, and recipe management through plug-in module
Additional Information
- Find out how our Micro Control system offers a cost-effective and customizable solution for standalone machines in micro applications. Plus, learn about all the Micro Control products that enable the system.
- Watch these videos for information about how to:
- Program our Micro800 controllers
- Configure devices and visualize with PanelView 800 graphic terminals
- Get started with our Connected Components Workbench software
- The Rockwell Automation PartnerNetwork™ offers complementary product solutions for Micro800 Controllers through the Encompass Product Reference program.
Product Selection
Specifications
Certifications
- c-UL-us CL1DIV2
- CE
- C-Tick
- KC
Certifications apply when product is marked. See our Product Certification site for Declarations of Conformity, certificates and other certification details.
Software
Documentation
| Resource | Publication Number | Language |
|---|---|---|
| Micro800 Family of PLCs Brochure | 2080-BR001 | |
| Micro830 Programmable Logic Controller Product Profile | 2080-PP002 | |
| Micro800 Programmable Controllers Family Selection Guide | 2080-SG001 | |
| Micro800 Programmable Controllers General Instructions | 2080-RM001 | |
| Micro800 External AC Power Supply Installation Instructions | 2080-IN001 | |
| Micro830 10-pt Installation Instructions | 2080-IN002 | |
| Micro830 16-pt Installation Instructions | 2080-IN003 | |
| Micro830 24-pt Installation Instructions | 2080-IN004 | |
| Micro830 48-pt Installation Instructions | 2080-IN005 | |
| Micro830 Programmable Controllers User Manual | 2080-UM002 |
Applications

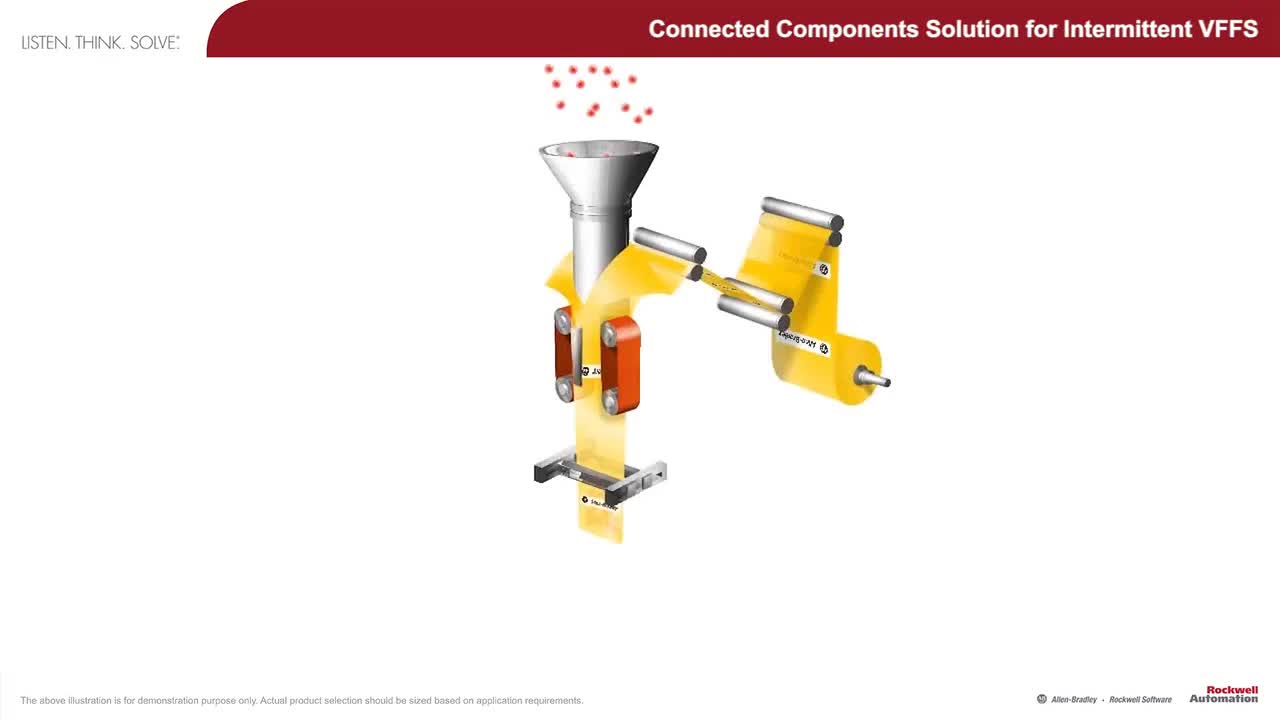

Intermittent Vertical Form, Fill, and Seal Machine

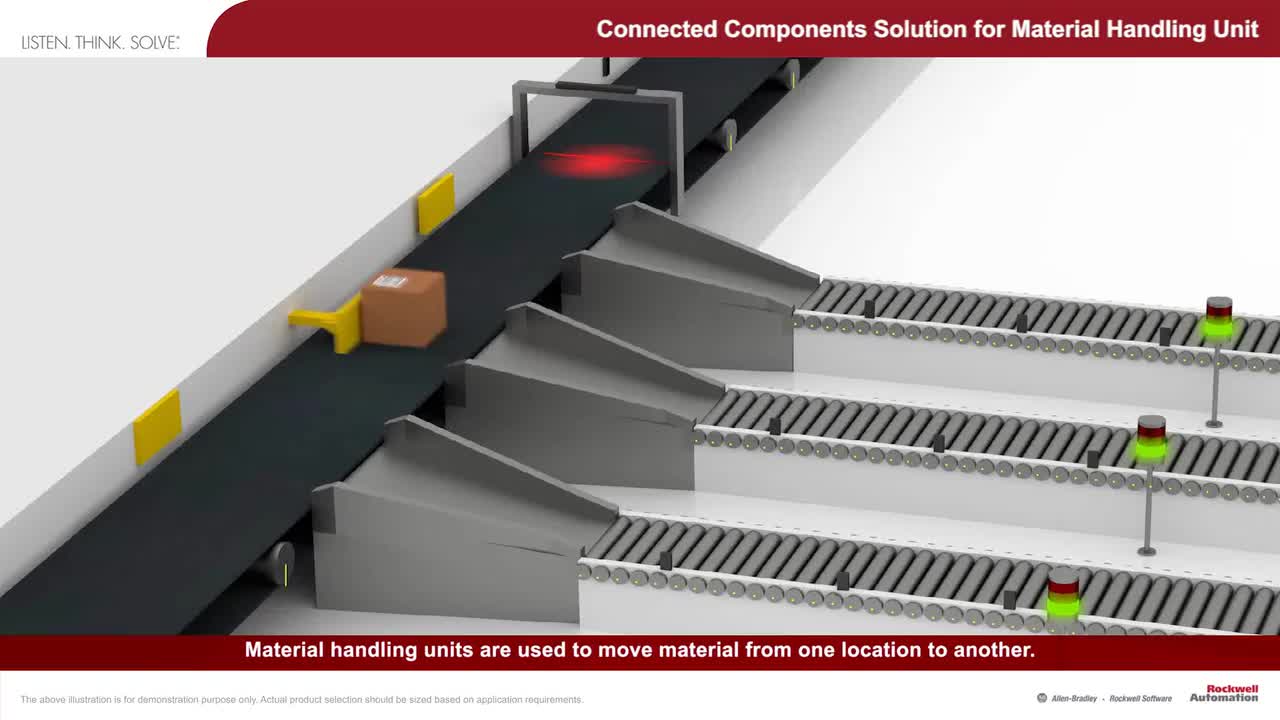

Material Handling
Solar Panel Positioning
